APA102 RGB LED Driver

This hardware abstracted driver can be used to interact with an APA102 or any compatible type over TWI/I2C. The hardware layer is fully abstract an can be switched between different plattforms. The SPI library has to impelement the spi.h-header used in this repository.

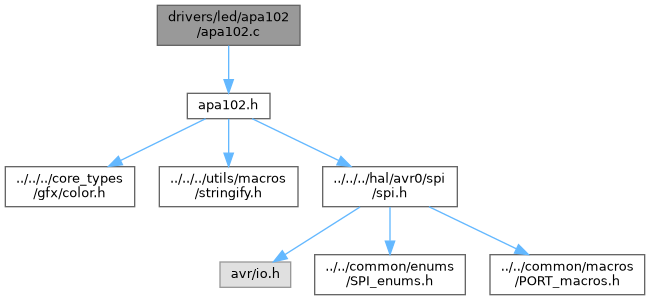

File Structure

drivers/
└── led/
    └── apa102/
        ├── apa102.c
        └── apa102.h

hal/
├── common/
|   ├── enums/
|   |   └── SPI_enums.h
|   └── macros/
|       └── PORT_macros.h
└── avr0/
    └── spi/
        ├── spi.c
        └── spi.h

core_types/
└── gfx/
    └── color.h

utils/
└──macros/
   └── stringify.h

The plattform avr0 can completely be exchanged with any other hardware abstraction library.

Downloads

The library can be downloaded (zip or tar), cloned or used as submodule in a project.

Type	File	Description
Library	zip / tar	APA102 RGB LED library including all required libraries (including hal-avr0-spi).

Using with git clone

mkdir -p ./core_types/
git clone https://github.com/0x007E/core_types-gfx.git ./core_types
mv ./core_types/core_types-gfx ./core_types/gfx

mkdir -p ./drivers/led/
git clone https://github.com/0x007E/drivers-led-apa102.git ./drivers/led
mv ./drivers/led/drivers-led-apa102 ./drivers/led/apa102

mkdir -p ./hal/
git clone https://github.com/0x007E/hal-common.git ./hal
mv ./hal/hal-common ./hal/common

# !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
# Hardware abstraction layer of SPI (Must fit the used plattform)
mkdir -p ./hal/avr0/
git clone https://github.com/0x007E/hal-avr0-spi.git ./hal/avr0
mv ./hal/avr0/hal-avr0-spi ./hal/avr0/spi
# !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

mkdir -p ./utils/
git clone https://github.com/0x007E/utils-macros.git  ./utils
mv ./utils/utils-macros  ./utils/macros

Using as git submodule

git submodule add https://github.com/0x007E/core_types-gfx.git        core_types/gfx

git submodule add https://github.com/0x007E/drivers-led-apa102.git    drivers/led/apa102
git submodule add https://github.com/0x007E/hal-common.git            hal/common

# !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
# Hardware abstraction layer of SPI (Must fit the used plattform)
git submodule add https://github.com/0x007E/hal-avr0-spi.git          hal/avr0/spi
# !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

git submodule add https://github.com/0x007E/utils-macros.git          utils/macros

Programming

#include "./hal/avr0/spi/spi.h"
#include "./drivers/led/apa102/apa102.h"

int main(void)
{
    spi_init(SPI_MSB, SPI_Rising, SPI_Rising);
    apa102_init();

    GFX_RGBA_Color color = {
        0x0F,
        0xF0,
        0xFF,
        APA102_MAX_INTENSITY
    }

    // To change the color independently on every led
    APA102_SOF();

    for (unsigned char i=0; i < APA102_NUMBER_OF_LEDS; i++)
    {
        apa102_led(&color);

        color.red++;
        color.blue--;
    }
    APA102_EOF();

    // Set the same color on all leds
    apa102_leds(&color);

    // Disable every second led
    APA102_SOF();

    for (unsigned char i=0; i < APA102_NUMBER_OF_LEDS; i++)
    {
        if(!((i + 1)%2))
        {
            apa102_led(&color);
            continue;
        }
        apa102_led_off();
    }
    APA102_EOF();

    // Disable all leds
    apa102_leds_off();
}

Additional Information

Type	Link	Description
APA102	pdf	RGB Full Color LED
T3A33BRG	pdf	Harvatek Surface Mount PLCC IC+RGB LEDs Data Sheet

---
