STRING_macros.h File Reference

Helper macros for stringification in C preprocessor. More...

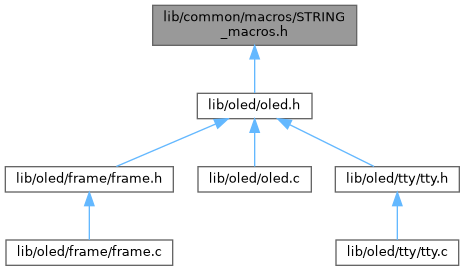

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	_STR2(x)
	Converts a macro argument into a string literal (internal helper).
#define	_STR(x)
	Converts a macro argument into a string literal (with expansion).

Detailed Description

Helper macros for stringification in C preprocessor.

This header file provides macros for converting tokens or macro values into string literals using the C preprocessor.

It contains two essential macros:

• _STR2(x) : Performs direct stringization of a token without expansion.
• _STR(x) : Expands a macro argument before converting it into a string literal.

These utilities are commonly used when embedding macro constants into message strings, compiler attributes, or debug output.

Note

_STR() should be preferred over _STR2() since it ensures proper expansion of macro arguments before stringization.

Author

g.raf

Date

2025-09-18

Version

1.0 Release

Copyright

Copyright (c) 2025 g.raf Released under the GPLv3 License. (see LICENSE in repository)

Note

This file is part of a larger project and subject to the license specified in the repository. For updates and the complete revision history, see the GitHub repository.

See also

https://github.com/0x007e/avr-common "AVR ATmega GitHub Repository"

Macro Definition Documentation

_STR

#define _STR

(

x

)

Value:

_STR2(x)

Converts a macro argument into a string literal (with expansion).

This macro first expands its argument x (if it is another macro), and then calls _STR2(x) to convert it into a string literal.

For example:

#define VALUE 42
const char *str1 = _STR(VALUE); // expands to "42"
const char *str2 = _STR(TEXT);  // expands to "TEXT"

Parameters

x	Token or macro to be expanded and converted into a string literal.

Returns

A string literal representing the expanded input.

Note

This macro is the preferred way to stringify macros, since it guarantees full expansion before stringization.

_STR2

#define _STR2

(

x

)

Value:

#x

Converts a macro argument into a string literal (internal helper).

This macro takes a single argument x and applies the preprocessor stringization operator (#), converting the token into a string literal. It is usually not used directly, but rather invoked via the higher-level macro _STR(), which ensures proper macro expansion before stringization.

Parameters

x	Token to be converted into a string literal.

Returns

A string literal representing the input token.

Note

This macro does not expand other macros passed as x before stringizing. Use _STR() for full expansion.
