Enumerations for TWI/I2C interface modes, operations, acknowledgment, and error codes. More...

#include "../defines/TWI_defines.h"

Include dependency graph for TWI_enums.h:

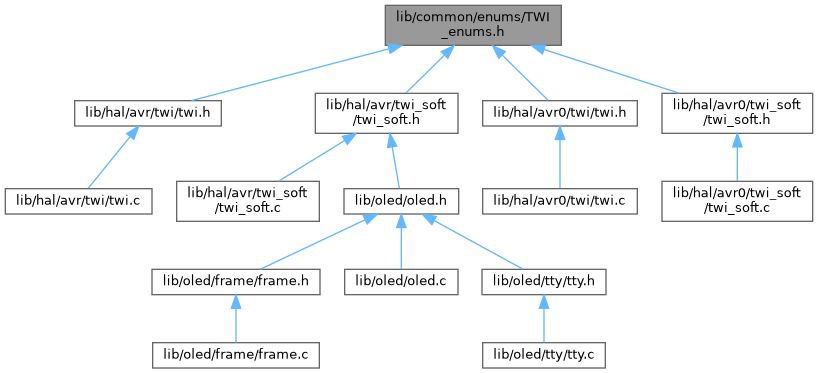

This graph shows which files directly or indirectly include this file:

Typedefs
typedef enum TWI_Mode_t	TWI_Mode
	Alias for enum TWI_Mode_t representing TWI device mode.
typedef enum TWI_Operation_t	TWI_Operation
	Alias for enum TWI_Operation_t representing TWI operation modes.
typedef enum TWI_Acknowledge_t	TWI_Acknowledge
	Alias for enum TWI_Acknowledge_t representing TWI acknowledge mode.
typedef enum TWI_Error_t	TWI_Error
	Alias for enum TWI_Error_t representing TWI error status.

Enumerations
enum	TWI_Operation_t { TWI_Write = 0x00 , TWI_Read = 0x01 }
	Specifies the operation type for the next TWI bus transmission. More...
enum	TWI_Acknowledge_t { TWI_NACK = 0x00 , TWI_ACK = 0x01 }
	Indicates acknowledgment status on the TWI bus. More...
enum	TWI_Error_t { TWI_None =0 , TWI_Run , TWI_Start , TWI_Arbitration , TWI_Ack , TWI_General }
	Error codes for software TWI operations. More...

Detailed Description

Enumerations for TWI/I2C interface modes, operations, acknowledgment, and error codes.

This header file defines the enums used to represent various states and configurations related to software TWI (Two-Wire Interface, I2C) communication. It includes enumerations for device operation modes (master/slave), communication operation types (read/write), acknowledgment status (ACK/NACK), and error codes for handling communication results.

Note: These enums improve code readability by providing meaningful symbolic names for TWI-related values, facilitating protocol-compliant and maintainable software design.

Author: g.raf

Date: 2025-09-02

Version: 1.0 Release

Copyright: Copyright (c) 2025 g.raf Released under the GPLv3 License. (see LICENSE in repository)

Note: This file is part of a larger project and subject to the license specified in the repository. For updates and the complete revision history, see the GitHub repository.

See also: https://github.com/0x007e/avr-common "AVR ATmega GitHub Repository"

Typedef Documentation

◆ TWI_Acknowledge

typedef enum TWI_Acknowledge_t TWI_Acknowledge

Alias for enum TWI_Acknowledge_t representing TWI acknowledge mode.

◆ TWI_Error

typedef enum TWI_Error_t TWI_Error

Alias for enum TWI_Error_t representing TWI error status.

◆ TWI_Mode

typedef enum TWI_Mode_t TWI_Mode

Alias for enum TWI_Mode_t representing TWI device mode.

◆ TWI_Operation

typedef enum TWI_Operation_t TWI_Operation

Alias for enum TWI_Operation_t representing TWI operation modes.

Enumeration Type Documentation

◆ TWI_Acknowledge_t

enum TWI_Acknowledge_t

Indicates acknowledgment status on the TWI bus.

This enumeration represents whether an acknowledgment (ACK) or a not-acknowledgment (NACK) was received following a data transfer on the software TWI (I2C) bus.

Enumerator
TWI_NACK	No acknowledgment received (NACK)
TWI_ACK	Acknowledgment received (ACK)

◆ TWI_Error_t

enum TWI_Error_t

Error codes for software TWI operations.

This enumeration defines the possible error statuses that can occur during software TWI (I2C) communication.

Enumerator
TWI_None	No error occurrs
TWI_Run	Operation running
TWI_Start	Start condition error
TWI_Arbitration	Arbitration error
TWI_Ack	Acknowledge error
TWI_General	General error

◆ TWI_Operation_t

enum TWI_Operation_t

Specifies the operation type for the next TWI bus transmission.

This enumeration indicates whether the next software TWI (I2C) communication operation is a write (master to slave) or a read (slave to master).

Enumerator
TWI_Write	Write operation (master sends data)
TWI_Read	Read operation (master receives data)
